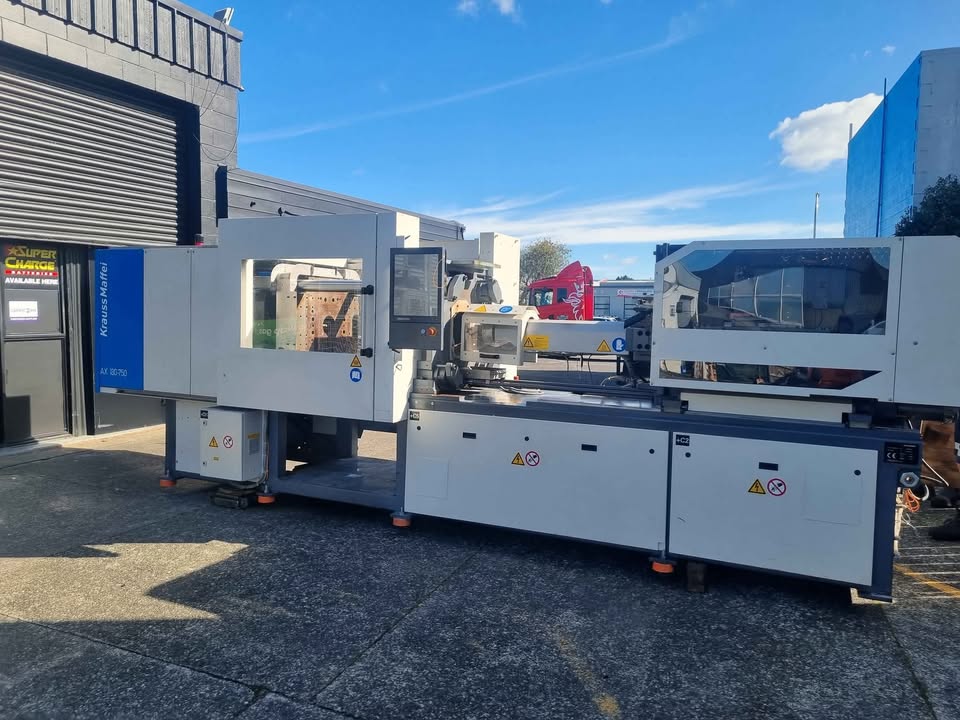

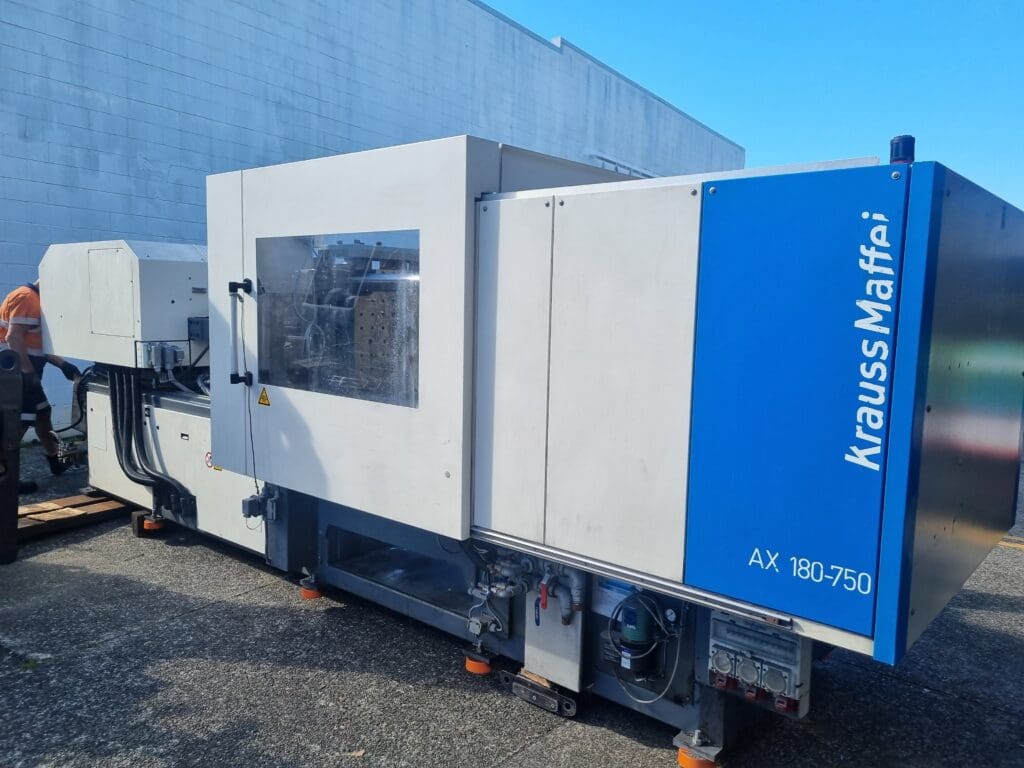

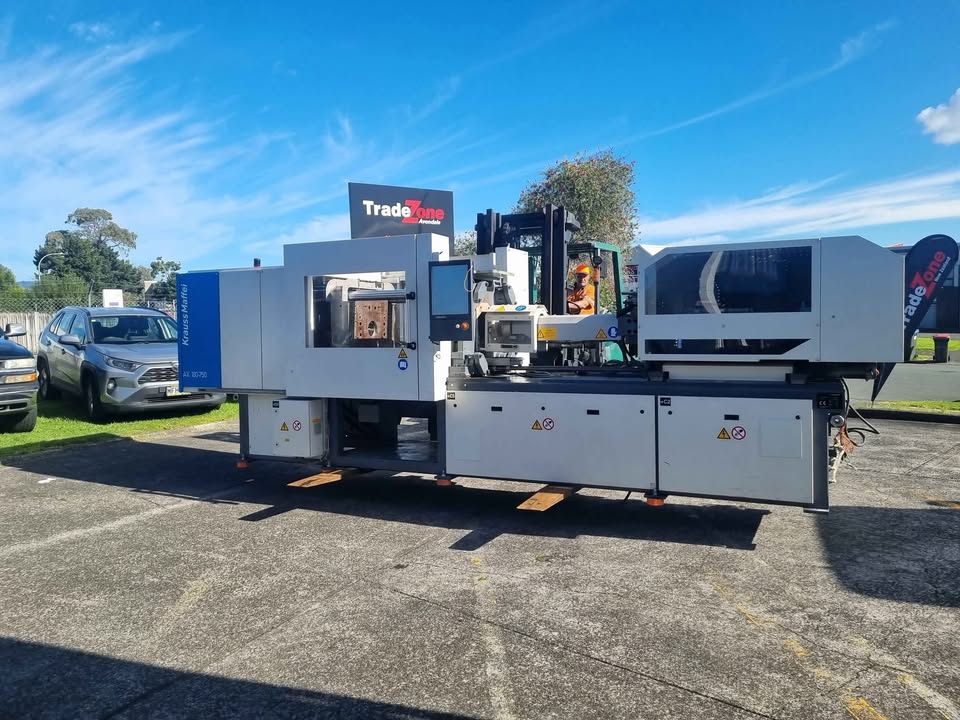

Krauss Maffei AX180-750 2 Ton
Injection Moulding Machine
Description
MC5 control system with color monitor, integrated control panel and built-in disk drive.
Plasticizing system
1 complete plasticizing system for thermoplastics with a screw diameter of 50 mm
TECHNICAL DATA
Closing unit
- Mold clamping force: 1760 kN
- Mounting plate dimensions (h x v): mm 790 x 740
- Clearance between columns (h x v): mm 560 x 510
- Way of opening the mold max: mm 450
- Height of the mold development min./max: mm 200/600
- Plate opening stroke: mm 1050
- Ejector stroke: mm 130
- Ejector force: 49 kN
Injection unit
- Screw diameter: mm 50
- Ls / D ratio: 20.2
- Injection pressure: 1892 bar
- Injection volume: cm3 393
- Injection weight for PS: 357 g
- Injection capacity: cm3 / s 314
- Number of screw revolutions, max: rpm 320
- Nozzle clamping force: 29.4 kN

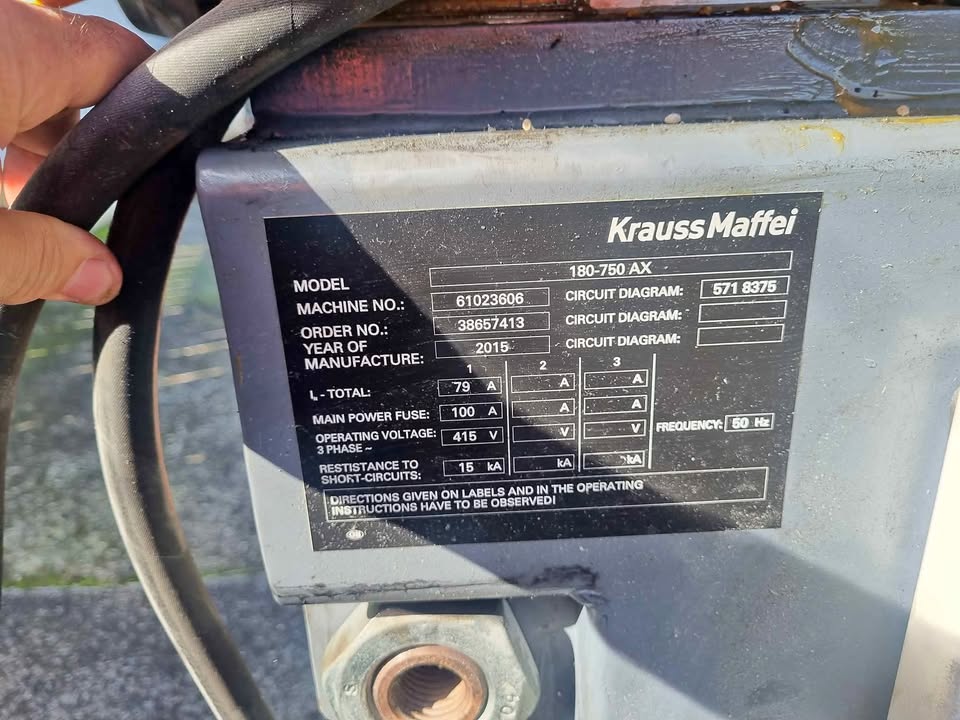

Electrical parameters
- Connection value: kW 38
- Heaters power: kW 15.6
- Number of cylinder heating zones: - 5
- Dry cycle time according to Euromap 6: 1 / h 2000
- Dry cycle time according to Euromap 6: s 1.8
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
